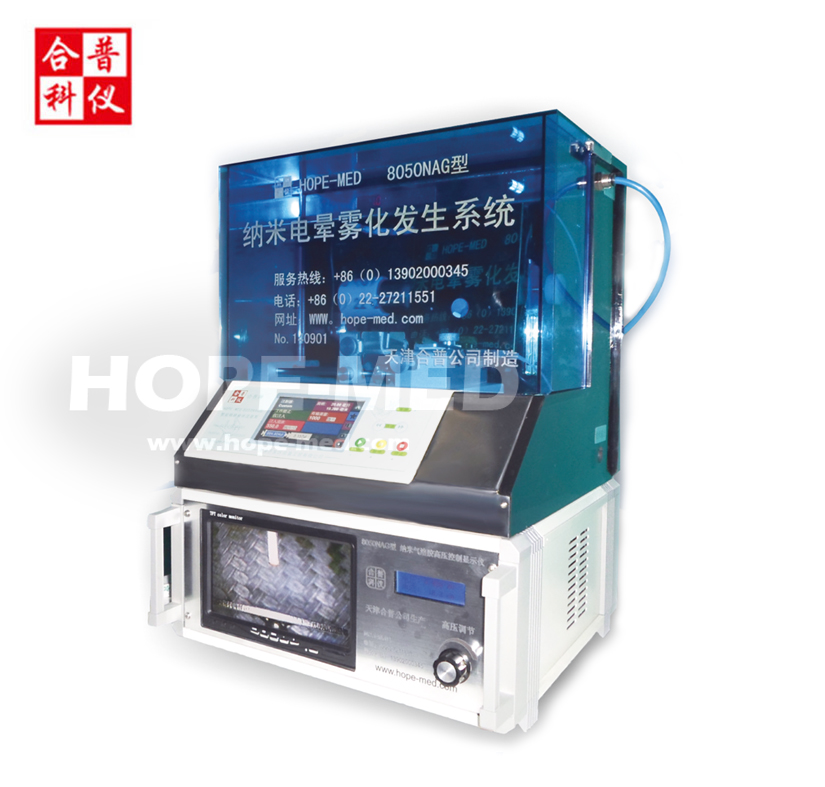

Nanoparticle Corona Nebulizer is a patented product developed by Tianjin Hope Industry &Trade Co., Ltd. It can evaluate the potential adverse effects of nanoparticles in air by simulating the real exposure environment.
Application areas
Environmental protection
Toxicology research
Drug Efficiency
Medical Research
Product Security
Pharmacology
Accurate Calibration
Biosafety
It has the advantages of elaborate design and simple structure. It can produce 0~20 kV high-voltage direct current and make the liquid electrospray. Nanoparticles as aerosols are provided for in-vitro and in-vivo realistic exposure.
1. Power: 220 VAC, 50 Hz
2. Output power: ≤50 w
3. Output voltage: 0~10
kV, DC
4. Output current: 0~1 mA
5. Atomization quantity: ≥500
nL/min
6. Use temperature: -25~55
℃
7. Range of particle size:
0.1~100 nm
8. The magnification of microscope:
20~800 times
9. Monitor: 7’ color touch
screen with 800×600 resolution
10. Continuous working
time: 0~24 h
11. Capillary diameter: 30
µm~1.5 mm
12. Dilution amount: 0~10
L/min, continuous adjustable and digital detection
13. Transfer quantity: 0-500
nL/min
14. Production: 0~1×109(particles/cm3)
