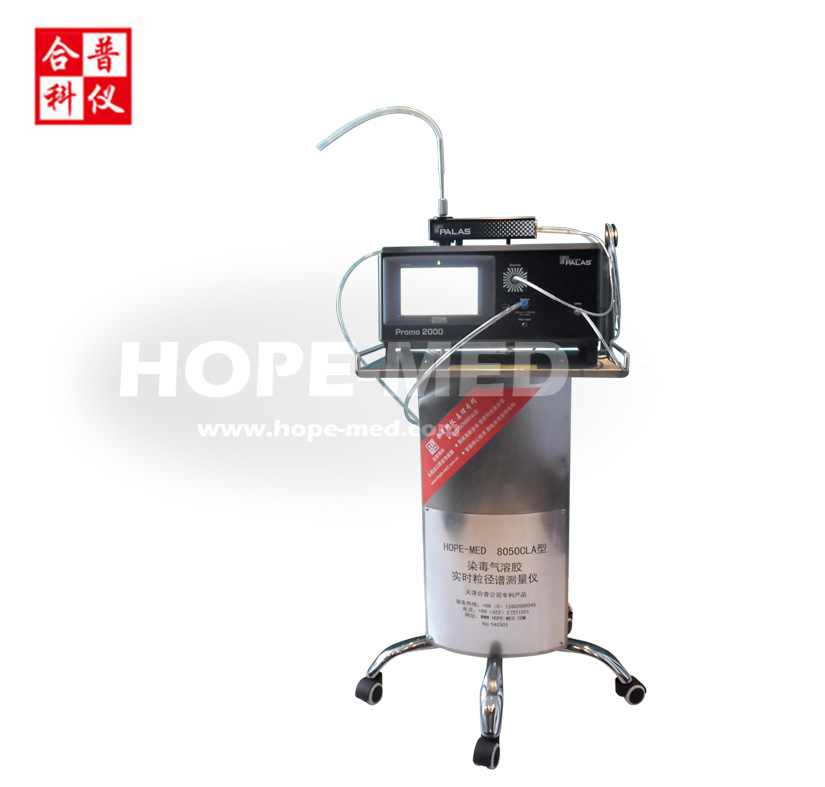

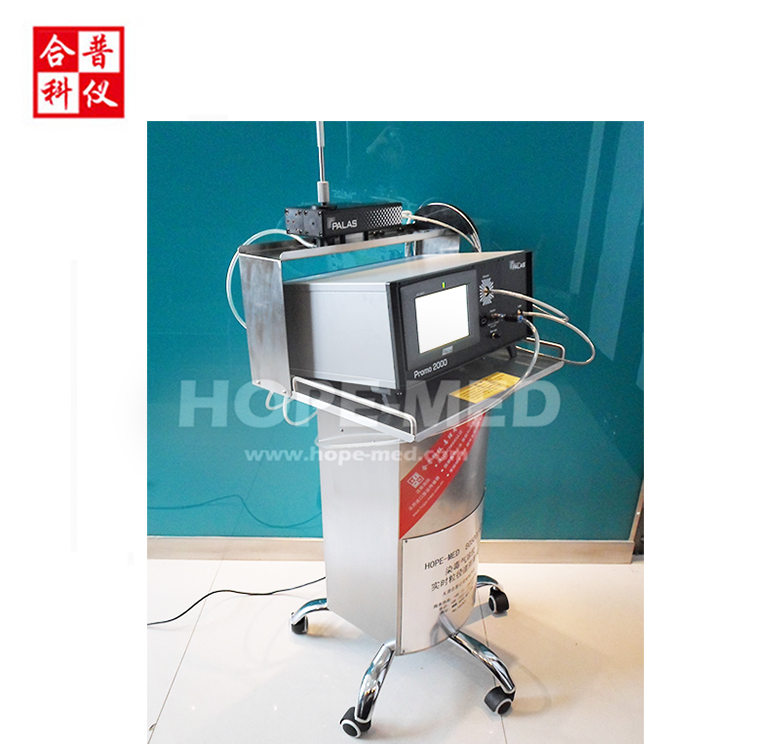

The device is a light scattering particle size analyzer for particle size analysis and concentration measurement.

1. The host and the sensor separation structure, which is convenient for placing.

2. Provide the standard size of dust, for calibration instrument and calibration error.

3. Friendly man-machine interface, it is easy to use and reach the demands of various experiments.

4. You can choose real time distributed measurement or timing distribution measurement.

5. Real time data can be viewed at any time.

6. The experimental data can be transmitted to the PC terminal for viewing.

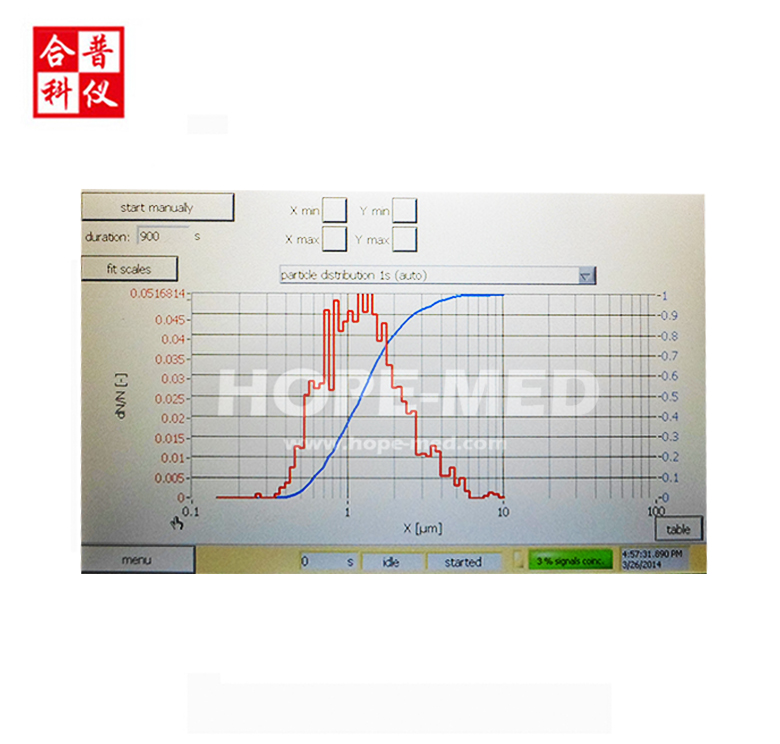

7. The particle size distribution curve, can be selected according to the experimental purpose and the experimental requirements.

1. Working voltage: AC230±10 v 50 Hz 200 W

2. The measurement range of particle size: 0.2~105μm

3. Main engine weight: 13 kg

4. The sensor weight: 3 kg

5. Main engine size: 190 mm×450 mm×370 mm

6. The sensor size: 50 mm×100 mm×250 mm
